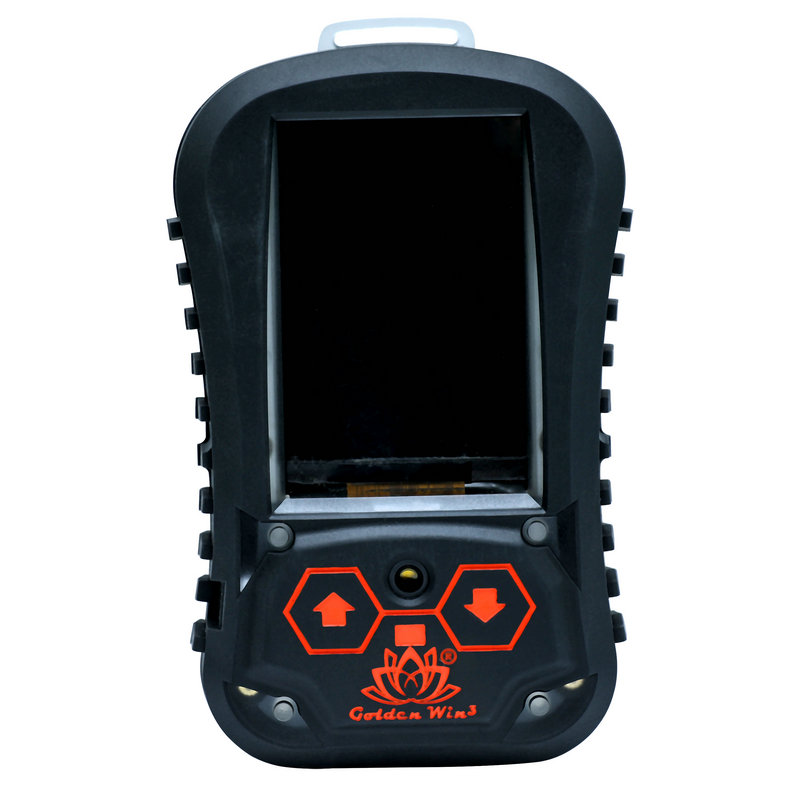

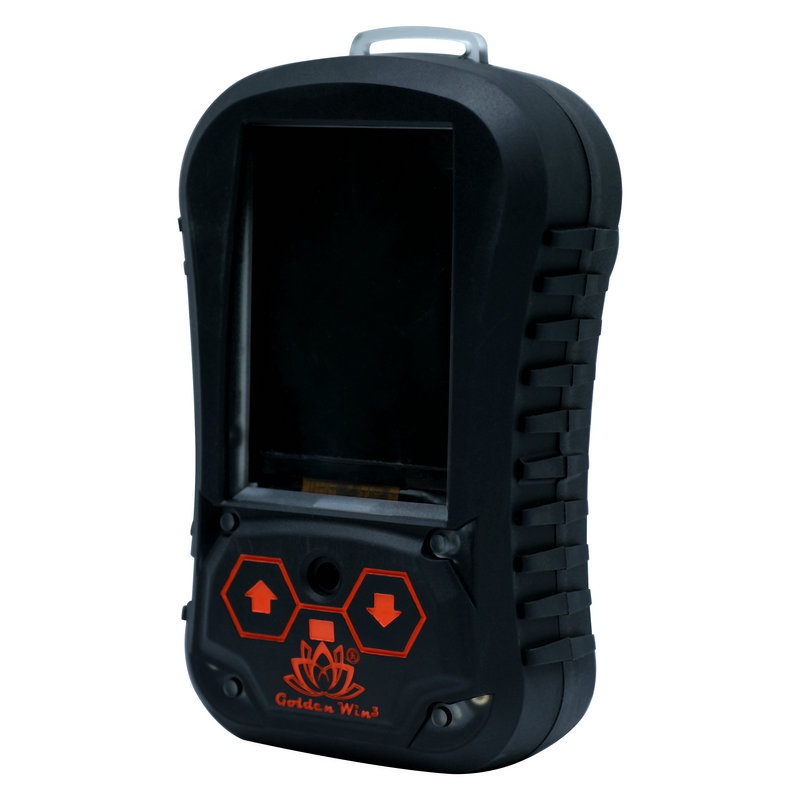

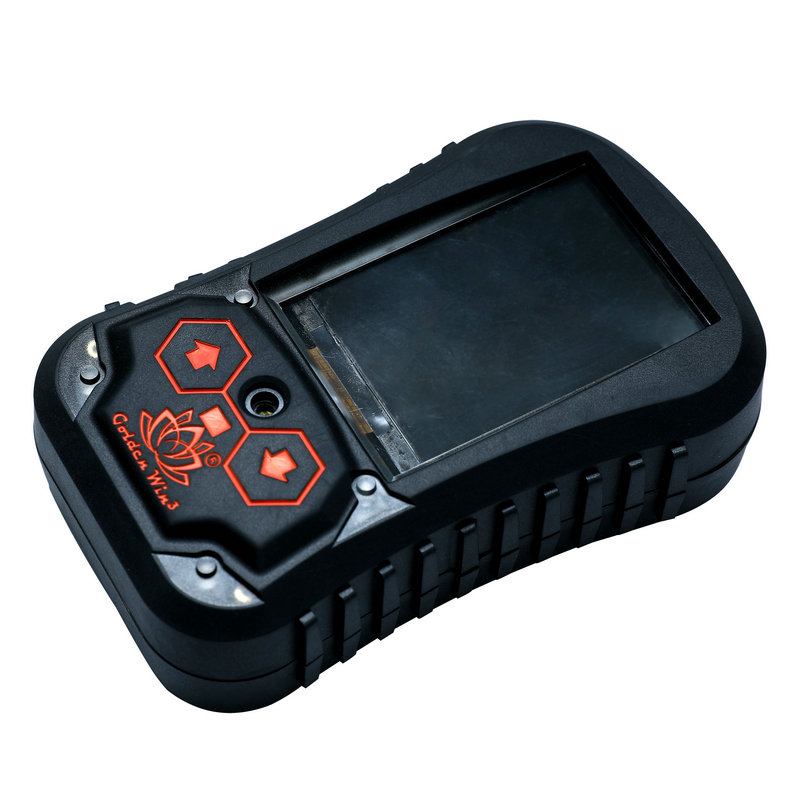

Win3 Portable particulate monitor dust instrument

More and more miners pay their attention to the Pneumoconiosis and they expect some tools to bring them a more heathy operation enviroment and they made efforts to reduce their dust exposure. Their efforts included: changing where they positioned themselves, making ventilation system improvements, and using respirators more often.

Win3 Dust Measuring Instrument is a very compact/light weight moitoring instrument that real time measures dust and particulate continuously including PM10, PM2.5, PM1 etc, which can infom and alert the miners when dust levels exceed regulatory limits.

Ultra Wide Band Technology, can Receive Warning Messages from other devices, for example Gas Detector, which make the operation more safe and confortable.
24 Hour Battery Life
Large Colour Graphic LCD with On-screen Graphing Function
Colour Coded Omni-directional Visual Alarm
Vibration Alert (Optional)
Self-diagnostics at Start-up
  • det02
Technical points
Product net weight (kg)
Packing Quantity (pcs)
Outer box size (mm)
Scenes to be used
Measuring range  all ranges 0.0 ug/m3 - 1.0 mg/m3
(Will display and log measurements > 1.0mg/m3)
0.32 It can be used in many applications with dust-laden activities like construction, mining, quarrying, ports, metallurgical processes, etc.
Measuring principal Laser scattering
Response time   Less than 2 seconds (8 seconds warmup)
Accuracy  0.0 ug/m3 - 1.0 mg/m3     +/- 10% (> 1.0 mg/m3 undefined)
Min & max pressure  - 10 KPa to + 50 Kpa
Max relative humidity 20% - 80% Non-condensing
Operating temperature  -10 to + 40oC
Storage temperature 0 – 20oC
Power source Battery pack  3.7 Volt   2,800 mAmp/hour
Battery pack  3.7 Volt   3.200 mAmp/hour
Operational time  > 12 hours
Real Time Clock accuracy <10 ppm (< 0.32%)
Dimensions  125 x 75 x 39 (mm)
Housing   Polycarbonate with TPE over-mold
Warranty   1 (one) year on all electronic parts and workmanship
6 (six) months on battery pack
Data storage  512Mbyte SD Card (Max size supported 2Gbyte
Record memory   10 years of records with 512Mbyte at 1 minute intervals (10 hours / day shifts)
Approval SANS/IEC 60079 Part 0: 200
SANS/IEC 60079 Part 11: 2007
Sensor Certification  Sira MC200350/00
